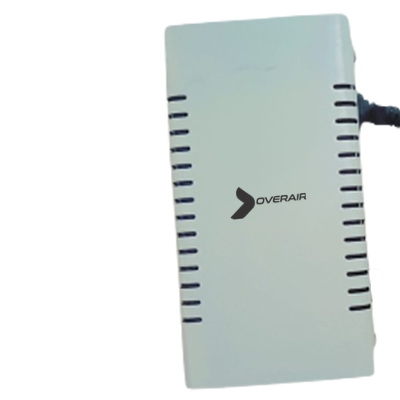

OVR-L14-PS04
V4Ch Switching Mode Power Supply
Product Features:
Eco Smart - Energy Efficient:
Multi-mode control maximizes efficiency over full load range
No-load consumption below 30 mW at 230 VAC
>75% efficiency with 1 W input at 230 VAC
>50% efficiency with 0.1 W input at 230 VAC
Compensation over line limits overload power
Fully integrated soft-start for minimum start-up stress
Extensive Protection Features:
Auto-restart limits power delivery to 3% during overload faults
Output short-circuit protection (SCP)
Output overload/over-current protection (OPP, OCP)
Optional extended shutdown delay time
Output overvoltage protection (OVP), auto-restart or latching
Line brown-in/out protection (line UV)
Line overvoltage (OV) shutdown extends line surge withstand
Accurate thermal shutdown (OTP), hysteretic or latching
